NAME
|

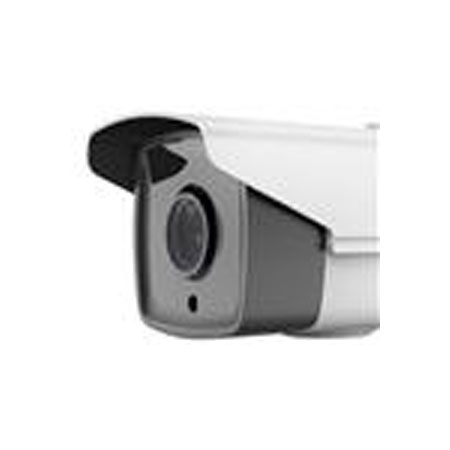

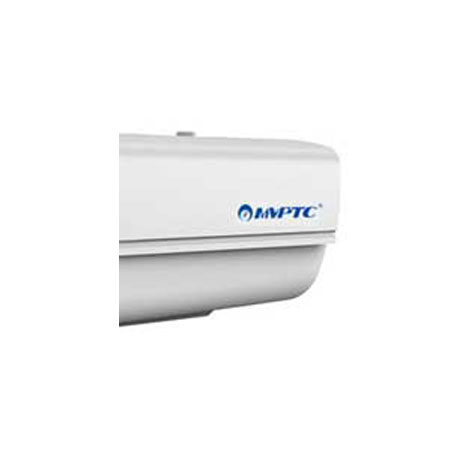

1.3MP IR Waterproof IP CAMERA
|
MODEL
|
MVB-IPC8610-I5(P)
|
MVB-IPC8610-I8(P)
|
CAMERA
|
Imaging equipment
|
1/3" Progressive Scan CMOS
|
Effective pixels
|
1280(H)*960(V)
|
Minimum illumination
|
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
|
Signal to noise ratio
|
≥50db(AGC OFF,Weight On)
|
Day and night
|
ICR Infrared double filter automatic electronic color turning black
|
Electronic shutter
|
auto 1/3to1/100,000s
|
LED
|
LED
|
Infrared distance
|
I3:30M,I5:50M,I8:80M
|
audeo and video Compression standard
|
video compression standard
|
H.264 / MJPEG
|
H.264 type
|
Main Profile
|
Compression output rate
|
32 Kbps~8Mbps
|
Character superposition
|
Support channel name, date time, code flow stack,The position of superposition can be adjusted
|
Audio coding
|
G.711,G.726, for 32K stereo
|
|
Maximum image size
|
1280(H)*960(V)
|
Frame rate
|
50Hz: 25fps(1280* 960,1280 * 720);60Hz: 30fps(1280 * 960,1280 * 720)
|
Image set
|
Corridor mode, saturation, brightness, contrast, sharpness through client or browser
|
Backlight compensation
|
Support, optional area
|
Area of interest
|
The ROI supports three - yard streams with one fixed area
|
接口
|
光学镜头
|
镜头
|
自动光圈
|
焦距
|
标配8mm固定镜头,可选配4\6\12\16mm
|
网络芯片
|
局域网
|
10/100M BASE-TX自适应
|
音频/对讲输入
|
1路麦克风输入(支持线性输入),3.5mm音频接口(可选)
|
音频输出
|
1路3.5mm音频接口(可选)
|
视频输出
|
1路CVBS视频BNC接口(可选)
|
存储接口
|
支持SD2.0标准Micro SDHC卡,最大容量32G(可选)
|
网络接口
|
局域网
|
10/100M网络自适应,RJ45适配器
|
I/O输入输出
|
1路开关量输入/1路开关量输出(120VAC 1A/24VDC 1A),1路RS232(可选)
|
数据传输及存储
|
数据存储
|
视频、图片文件
|
存储机制
|
手动、自动(循环、定时、报警开关量、移动侦测)
|
报警数据传输
|
FTP、E-mail电子邮件、浏览器、管理软件
|
协议支持
|
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
|
无线协议支持(-W)
|
802.11b/g/n、支持WEP、WPA、WPA2加密协议
|
ONVIF协议
|
支持
|
客户端浏览
|
PC电脑
|
支持IE6.0及以上,支持10用户并发访问(MAX)
|
智能手机
|
支持Android、IOS监看
|
常规参数
|
工作温度
|
-10℃ - +55℃
|
工作湿度
|
0% - 90%
|
供电
|
DC12V/PoE(-POE)
|
功耗
|
10W(MAX)
|
