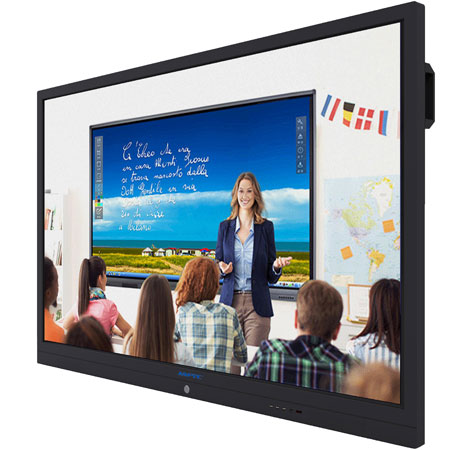

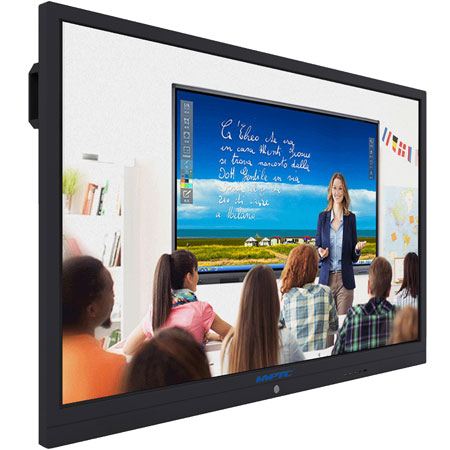

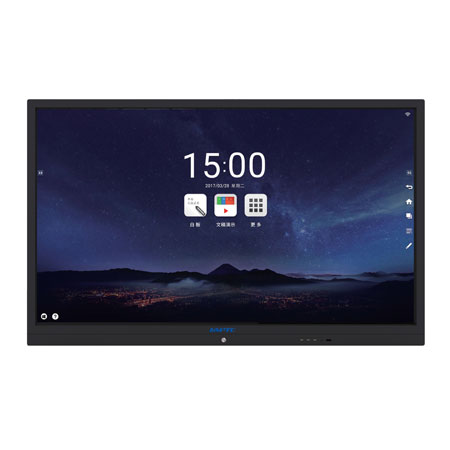

MVB-ITP9800L-U
98"4kIntelligent Interactive Board
MVPTC 98Inch intelligent interactive touch-one machine with exclusive automatic balance, image processing, automatic debugging and embedded built-in image processor, with advanced photoelectric isolation technology, UHD ultra-high definition display, interactive touch technology, and modular structure Design and advanced installation process to support dual systems for superior image quality and reliability.
MVPTC intelligent interactive touch-one machine is perfectly integrated with today’s mainstream operating system Android&Windows7/10, which realizes multi-touch and can instinctively and naturally perform operations such as zooming, rotating and annotating pictures, videos, web pages, documents, etc. Make the touch lighter and smoother, and bring the touch experience to a new height, fully reflecting the unique charm of human-computer interaction.
• UHD 4K LCD display
• Anti-glare and anti-collision tempered glass on screen surface
• 10-point touch control and smooth writing experience
• Touch difference resolution up to 32768 × 32768
• Compatible with pluggable OPS-C
• Various interfaces on panel and control buttons for easy operation
• Low radiation, low consumption and environmental
Model
|
MVB-ITP9800L-U
|
Display Parameter
|
Panel Size
|
98"
|
LCD Type
|
DLED
|
Unpacking Dimension(mm)
|
2241.66* 118 * 1138.2 mm
|
Packing Dimension(mm)
|
2525 * 435 * 1750 mm
|
Net Weight/Gross Weight
|
140kg/195kg
|
Optimum Resolution Ratio
|
3840*2160@60Hz
|
Viewing Angle
|
178°/178°
|
Colour
|
1.07B
|
Brightness
|
500cd/m2
|
Contrast Ratio
|
1300:1
|
Response Time
|
5ms
|
Power
|
≤480W
|
Operating Voltage
|
100V~240V,50-60Hz
|
|
|
Interface
|
Input
|
HDMI
|
*2
|
VGA
|
*1
|
PC-AUDID
|
*1
|
Y/Pb/Pr
|
*1
|
AV
|
*1
|
USB
|
*6
|
RS232
|
*1
|
Output
|
EARPHONE
|
*1
|
TV-AUDIO
|
*1
|
RS232
|
*1
|
HDMI
|
*1
|
COAX
|
*1
|
